| Brand Name : | KIMRAY |
| Model Number : | EYA 250 SMT PB PO-D W/TI |
| Supply Ability : | 999 Acre/Acres per Day |
| Price : | Negotiation |

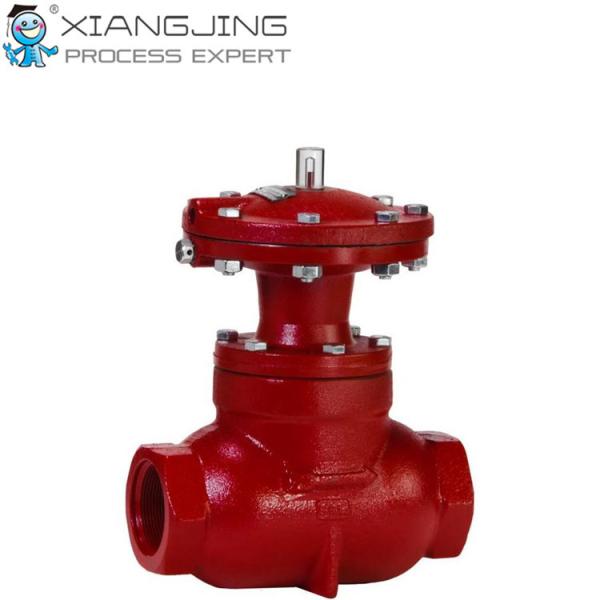

Upstream vs downstream pressure is balanced via communication of the process fluid above and below the balancing diaphragm or piston in order to eliminate opening/closing forces due to pressure differential. Designed for liquid systems, and available in either pressure-opening (normally closed) or pressure-closing (normally open) configurations.
Specifications
Connection Size: 2 "
Connection Type: Female NPT
Body Style: Through Body
Body Material: Cast Ductile
Option Available for NACE MR0175 compliance or certification.
Trim Size: 1.5 "
Trim Type: Linear (Nominal)
Seal Class: Class VI
Process Fluid: Liquid and Gas
Max. Working Pressure: 500 psig
Actuator Spring Nominal Pressure: 35 psig
Actuator Crack Open Pressure: 10 psig
Actuator Full Open Pressure: 35 psig
Max. Supply Gas Pressure: 45 psig
Valve Fail Position: Closed
Operation: Pneumatic
Catalog Page: E3:20.3
Face-to-Face Length: 8.5 "
Repair Kit P/N: RFP
