| Brand Name : | Samson |
| Model Number : | 3277 |
| Certification : | EAC |
| Price : | Negotiation |
| Payment Terms : | L/C, T/T, D/A, D/P, MoneyGram |
| Supply Ability : | 500 Set Per Month |
| Delivery Time : | 7 to 20 Workdays |

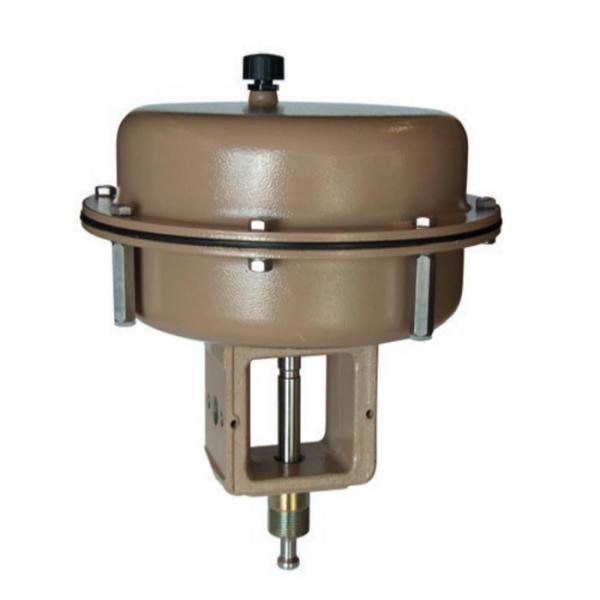

Samson Type 3277 Pneumatic actuators up to 750v2 cm² for control valve
Product Introduction
Specifications
Actuator stem | 1.4404 |
Actuator area | |
| Power Source | Pneumatic |
| Application | Angle Valve, Global Valve |
Travel (adjustable) | Direct attachment to Type 3277: 5 to 30 mm Direct attachment to Type 2780-2: 6/12/15 mm Attachment to Type 3372 Actuator: 15/30 mm Attachment according to IEC 60534-6 (NAMUR): 5 to 50 mm Attachment to rotary actuators: 24 to 100° |
Minimum current | 3.8 mA |
Load impedance | Max. 6.3 V (corresponds to 315 Ω at 20 mA) |
Supply air Air quality acc. to ISO 8573-1 | Supply air: 1.4 to 7 bar (20 to 105 psi) Max. particle size and density: Class 4 · Oil content: Class 3 ·
Pressure dew point: Class 3 or at least 10 K below the lowest ambient temperature to be expected |
Signal pressure (output) | 0 bar up to the capacity of the supply pressure · Can be limited to
approx. 2.3 bar by software |
Permissible ambient temperature | –20 to +80 °C –25 to +80 °C with metal cable gland The limits in the test certificates additionally apply for
explosion-protected versions |
Influences | Temperature: ≤0.15 %/10 K Effect of vibration: ≤0.25 % up to 2000 Hz and 4 g according to IEC
770 Supply air: None |
Detailed Image
Packaging and Delivery
1. Swift delivery
For common parts, we can deliver the goods within 3 days
2. Original products
All the products we sell are from origin manufacturer. We will
submit all the manufacturer documentation while we finish delivery.
3. Quality Assurance
4. Technical Support
Including inspection, repair, and maintenance, we can give all
kinds of technical support.
5. Quickly response
Our staffs will keep 24h online and answer your question very
quickly.
|
|
