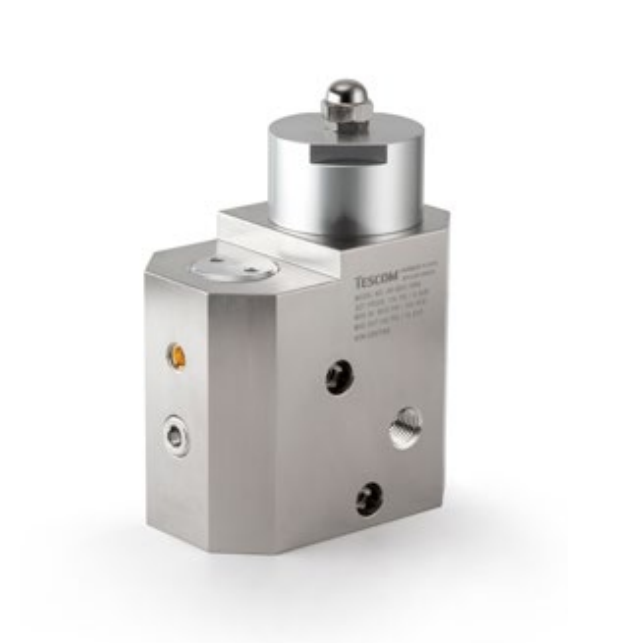

    EMERSON TESCOM HV - 3500 Series Pressure Reducing Regulators

    Ask Lasest Price
    Brand Name : EMERSON TESCOM
    Model Number : HV-3500
    Price : negatiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50
    Delivery Time : 4-12 week
    • Product Details
    • Company Profile

    EMERSON TESCOM HV - 3500 Series Pressure Reducing Regulators

    Product Description

    HV-3500 Series Pressure Reducing Regulators


    Specifications
    For other materials or modifications, please consult Emerson.
    OPERATING PARAMETERS
    Pressure rating per criteria of ANSI/ASME B31.3
    Nominal Inlet Service Pressure
    5076 psi / 35.0 MPa / 350 Bar
    Maximum Inlet Pressure
    6345 psi / 43.8 MPa / 438 Bar
    Minimum Inlet Pressure
    290 psi / 2.0 MPa / 20.0 Bar
    Operating at pressures below this minimum pressure could limit the maximum
    flow rate
    Design Proof Pressure
    150% of nominal inlet service pressure
    Leakage
    Bubble-tight
    Operating Temperature
    -40 °F TO +185 °F / -40 °C TO +85 °C
    Flow Capacity
    Cv = 0.17
    Decaying Inlet Characteristic
    0.05 psi / 3.4 mbar per 100 psi / 6.9 bar change in inlet pressure
    Filter
    10 µm
    The 10 µm filter is for initial system assembly protection. The product is
    designed to be used with particulate free hydrogen. Your system should
    be designed with proper filtration before the regulator to protect against
    contamination.

    Specifications
    Pressure Range
    5-100 psi (35-700 kPa), (0.35-7 bar)
    Certifications
    PED, CUTR, ATEX
    Inlet Pressure Rating
    1.7MPa(17bar)
    outlet Pressure Rating
    0.42MPa
    Weight
    1~3KG
    Application
    Gas& Oil industry
    EMERSON TESCOM HV - 3500 Series Pressure Reducing Regulators

    Special features

    TESCOM HV-3500 Series Two Stage Pressure Reducing
    Regulator is a reliable, low maintenance pressure
    control solution. It is specially designed for use onboard
    industrial and commercial hydrogen fuel cell vehicles
    and allows manufacturers to maximize fuel efficiency
    and keep their fleet on the road for a longer distance.
    The HV-3500 also provides consistent pressure and
    continuous flow in a full range of operating conditions.
    It is suitable for nominal inlet pressures up to 35.0 MPa
    and flow rates above 3.2 g H2/s.
    Applications
    *

    Onboard industrial/commercial light and heavy-duty
    hydrogen fuel cell vehicles like buses and trucks
    Features and Benefits
    *

    Dual stage and active seal design that provides
    consistent pressure and continuous hydrogen fuel
    supply to fuel cells, decreasing downstream over
    pressurization risk
    *

    Superior shutoff performance
    *

    Corrosion resistant, nickel-plated aluminum body
    *

    One design suitable for the full range of vehicle
    operating conditions and various system pressure
    settings
    *

    Compact and lightweight configuration
    *

    Specially designed shape and standard mounting
    holes for ease of installation
    *

    Standard ports for sensor and pressure relief valve
    integrations
    *

    Local manufacturing and support
