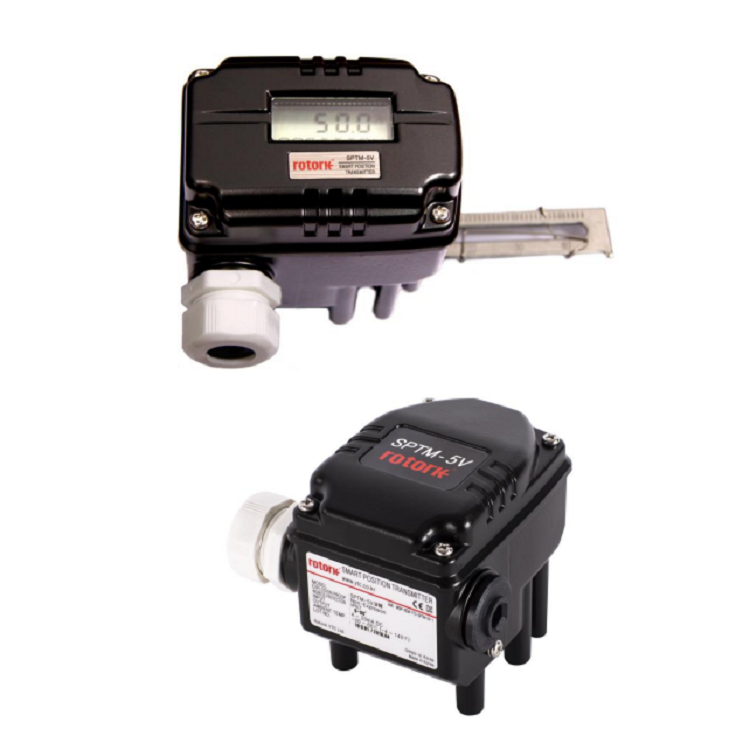

    SPTM-5V Smart Electric Control Valve Position Transmitter Pneumatic Parts

    Ask Lasest Price
    Brand Name : Rotork YTC
    Model Number : SPTM-5V
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50
    Delivery Time : 4-10 weeks
    • Product Details
    • Company Profile

    SPTM-5V Smart Electric Control Valve Position Transmitter Pneumatic Parts

    Product Description

    pneumatic parts ROTORK YTC SPTM-5V Smart Position Transmitter for valve

    Product Description
    2.1 General SPTM-5V series is 2 wire type transmitter with in-built micro-processor which transmits 4 ~ 20 mA
    DC signal according to changes in valve or damper position.
    2.2 Main Features and Functions
    ➢ Non-explosion proof.
    ➢ A wide rangeof uses with IP67 protection grade.
    ➢ LCD displays current output signal. (Option)
    ➢ Very easy and simple calibration.
    ➢ Polyesterpowder coating of SPTM-5V resists the corrosion process.
    Specifications
    Pressure Range
    5-100 psi (35-700 kPa), (0.35-7 bar)
    Certifications
    PED, CUTR, ATEX
    Inlet Pressure Rating
    1.7MPa(17bar)
    outlet Pressure Rating
    0.42MPa
    Weight
    1~3KG
    Application
    Gas& Oil industry
    SPTM-5V Smart Electric Control Valve Position Transmitter Pneumatic Parts
    SPTM-5V Smart Electric Control Valve Position Transmitter Pneumatic Parts
    SPTM-5V Smart Electric Control Valve Position Transmitter Pneumatic Parts

    Special features

    Safety When installing a unit, please ensure to read and follow safety instructions.
    ➢ Be sure to have protective equipment and
    comply with safety regulations.
    ➢ After setting the pressure, secure the nut so that the adjustment bolt does not turn.
    ➢ Supply
    pressure should be used with clean air.
    ➢ Use within specifications specified in the manual. Exceeding the specification may
    result in damage to the product or accident.
    ➢ If there is any impact on the product, it may cause malfunction or failure, so be
    careful during handling, installation and operation.
    ➢ For maintenance, periodically open the drain plug at the bottom of the
    product to discharge the condensate.
    ➢ Exhaust to the atmosphere are made through a small exhaust hole next to the spring case.
    ➢Install the product with the adjustment bolt facing up. Otherwise, the life cycle of the product may be shortened or moisture and
    foreign substance may enter into the vent hole, leading to damaging internal parts.

    Packing & Delivery
    SPTM-5V Smart Electric Control Valve Position Transmitter Pneumatic Parts
    Our Service
    SPTM-5V Smart Electric Control Valve Position Transmitter Pneumatic Parts

    1.Swift delivery
    For common parts, we can deliver the goods within 3 days

    2.Original products
    All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

    3.Quality Assurance

    4.Technical Support
    Including inspection,repair and maintenance, we can give all kinds of technical support.

    5.Quickly responce
    Our staffs will keep 24h online and answer your question very quickly.

    Our Company
    SPTM-5V Smart Electric Control Valve Position Transmitter Pneumatic Parts
    Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd.
    Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conservancy and hydropower, thermal power generation and other mechanical and electrical equipment products; Well-known brand fluid control valves; instrumentation; hydraulic pipe fittings; bearings; seals; industrial automation and other high-tech enterprises.
    SPTM-5V Smart Electric Control Valve Position Transmitter Pneumatic Parts
    SPTM-5V Smart Electric Control Valve Position Transmitter Pneumatic Parts
    SPTM-5V Smart Electric Control Valve Position Transmitter Pneumatic Parts
    SPTM-5V Smart Electric Control Valve Position Transmitter Pneumatic Parts
