    IMI STI SA/CL Smart Electro Pneumatic Positioners With Chinese Control Valve

    Ask Lasest Price
    Brand Name : IMI STI
    Model Number : SA/CL
    Price : Negotiation
    Supply Ability : 100 Set/Sets per Month
    • Product Details
    • Company Profile

    IMI STI SA/CL Smart Electro Pneumatic Positioners With Chinese Control Valve


    IMI STI SA/CL Smart Electro Pneumatic Positioners With Chinese Control Valve

    IMI STI smart positioner pneumatic and electro-pneumatic positioners for fisher EZ ET valve body

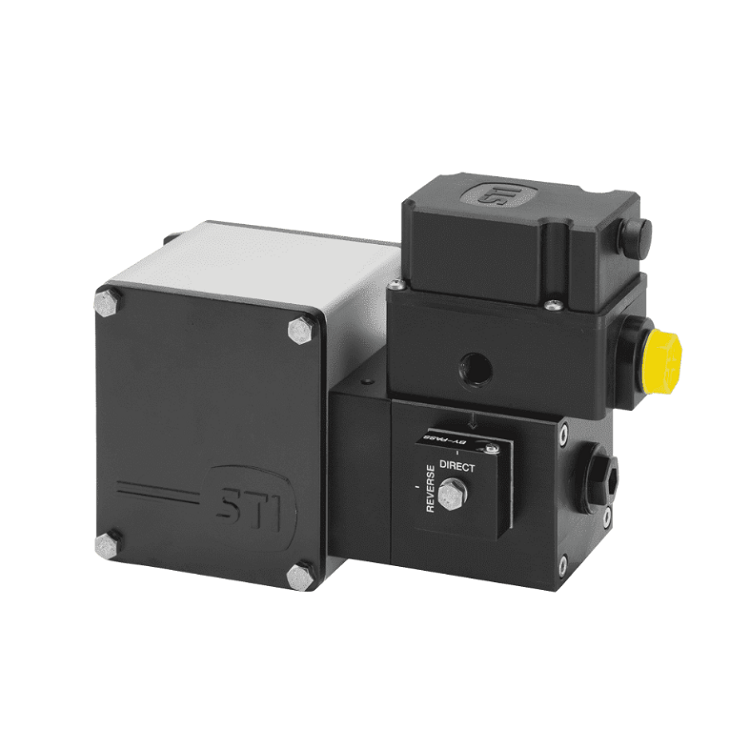

    The SA/CL is an analog positioner available in a pneumatic and electro-pneumatic version. The positioner has a heavy duty design making it suitable for use in very harsh conditions. It is used as the control part of the pneumatic valve set in oil and gas,refining, chemical, power, metal production and other fields with automated systems.
    The UP-2 pneumatic version accepts a 3-15 psi(0.2-1 bar) signal and the electro-pneumatic version a 4-20 mA signal.
    * When using the electro-pneumatic version an I/P converter is installed on the pneumatic positioner which allows an electric signal to pilot the positioner. It is based on the balanced-forces principle; air distribution to actuator chambers is executed by an internal spool.
    * The SA/CL is designed to be used for applications on linear actuators with a stroke length of up to 70mm. This positioner is double acting but can also be used as single acting if required.

    Specifications
    Pressure Range
    5-100 psi (35-700 kPa), (0.35-7 bar)
    Certifications
    PED, CUTR, ATEX
    Inlet Pressure Rating
    210 psi (1.5 MPa, 15 bar) maximum
    Operating Temperature
    Standard Temperature
    Connection
    SOLENOID
    Application
    Gas& Oil industry
    IMI STI SA/CL Smart Electro Pneumatic Positioners With Chinese Control Valve

    Special features

    * Metallic case.
    * Heavy duty design.
    * High reliability.
    * Integrated bypass only for ND 1/4” version.
    * Action inversion without tubing inversion only for ND 1/4” version.
    * Air purge version.
    * Sandstorm execution.
    * Split range signal.
    * Special characterisation/range.
    * Suitable for big size/fast stroking actuator.

    Detailed Images
    IMI STI SA/CL Smart Electro Pneumatic Positioners With Chinese Control Valve
    Packing & Delivery
    IMI STI SA/CL Smart Electro Pneumatic Positioners With Chinese Control Valve
    Our Service
    IMI STI SA/CL Smart Electro Pneumatic Positioners With Chinese Control Valve

    1.Swift delivery
    For common parts, we can deliver the goods within 3 days

    2.Original products
    All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

    3.Quality Assurance

    4.Technical Support
    Including inspection,repair and maintenance, we can give all kinds of technical support.

    5.Quickly responce
    Our staffs will keep 24h online and answer your question very quickly.
