    Avp300 Avp301 Avp302 Azbil Smart Valve Positioner Butterfly Valve With Positioner

    Ask Lasest Price
    Brand Name : Azbil
    Model Number : Azbil Avp300 Avp 301 Avp302
    Price : Negotiation
    Supply Ability : 999 Set/Sets per Year
    • Product Details
    • Company Profile

    Avp300 Avp301 Avp302 Azbil Smart Valve Positioner Butterfly Valve With Positioner

    Product Description

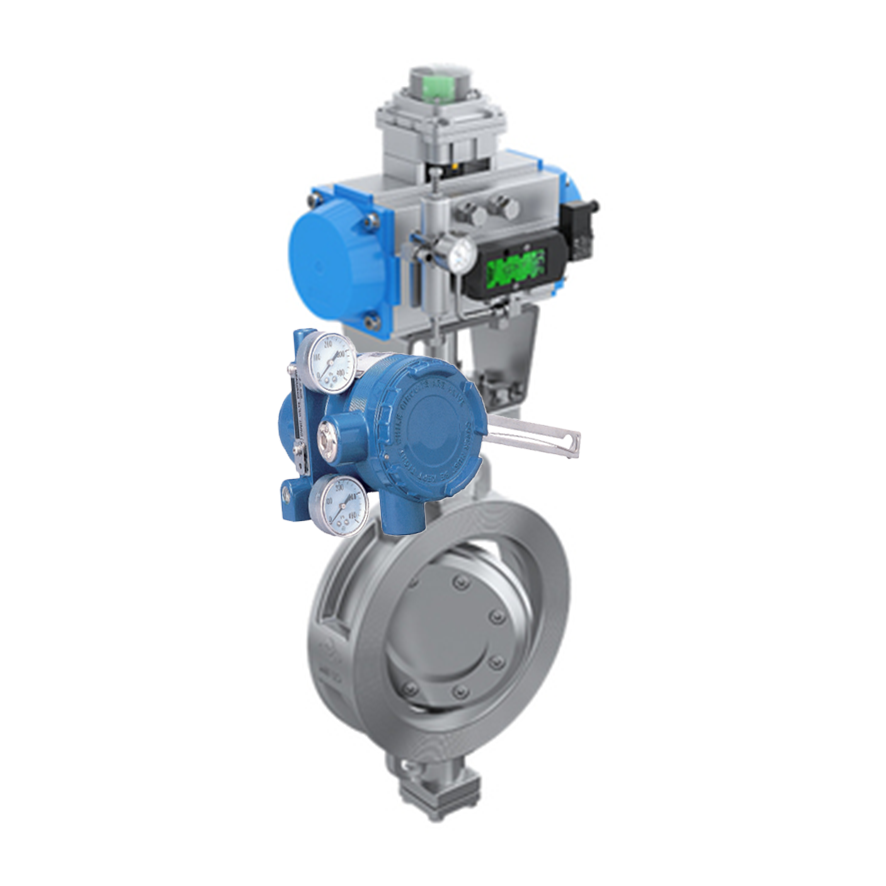

    Chinese butterfly valve with electropneumatic positionr Azbil Smart Valve Positioners Azbil Avp300 Avp 301 Avp302 and actuator

    Smart Valve Positioner 300 Series Models AVP300/AVP301/AVP302 are current-pneumatic smart valve positioners.The 300 Series receives a DC current signal from controldevices and controls pneumatic valves. In addition to thisbasic function, the 300 Series has communication capabili-ties, automatic configuration program, and self diagnosticsfunctions that will greatly increase productivity and theefficiency of plant operation.The model AVP301 has a valve travel transmitter functionwhich transmits a 4-20 mA DC signal. The model AVP302has a HART communication protocol.

    Improves process control High accuracy and high resistance to vibrationimprove control valve performance, allowing tighterprocess control and reduction in product variability.
    lmproves productivity Easy-to-use fully automatic set-up and calibration,with diagnostics, makes these tasks easier and ableto be completed in less time.
    Reduces spares Single universal model applies to most valveapplications.

    Avp300 Avp301 Avp302 Azbil Smart Valve Positioner Butterfly Valve With Positioner
    Specifications
    Reference variable
    4 to 20 mA
    Trave
    5 to 50 mm
    Opening angles
    24 to 100°
    Operating Temperature
    Standard Temperature
    Explosion protection
    Intrinsic safety: ATEX, STCC,
    Application
    Gas& Oil industry

    Special features

    1. Easy to use Auto setup The auto-setup function is a fully-automatic configura-tion program which specifies the actuator and adjusts thezero and span of the valve. The program can be turned onsimply from an external switch so that adjustments to thevalve can be performed quickly and safely in hazardousareas
    2. Single model for multiple specificationsThe 300 Series' settings can be changed without replacingany parts. A single model can be modified to suit any application. Input range:Configurable to any required range for split rangeFlow characteristic: Linear, EO%%, Quick opening or custom user characteris-tics Actuator type:Single or double acting actuator (optional reversing relayrequired)
    3. Valve diagnostic (Model AVP302 only)
    Following parameters can be monitored by HART com-municator or Control Valve Maintenance Support SystemValstaff Stick Slip Total Stroke .Travel Histogram Cycle Count Shut-Off Count Travel Speed

    Detailed Images
    Avp300 Avp301 Avp302 Azbil Smart Valve Positioner Butterfly Valve With Positioner
    Avp300 Avp301 Avp302 Azbil Smart Valve Positioner Butterfly Valve With Positioner
    Avp300 Avp301 Avp302 Azbil Smart Valve Positioner Butterfly Valve With Positioner
    Packing & Delivery
    Avp300 Avp301 Avp302 Azbil Smart Valve Positioner Butterfly Valve With Positioner
    Our Service
    Avp300 Avp301 Avp302 Azbil Smart Valve Positioner Butterfly Valve With Positioner

    1.Swift delivery
    For common parts, we can deliver the goods within 3 days

    2.Original products
    All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

    3.Quality Assurance

    4.Technical Support
    Including inspection,repair and maintenance, we can give all kinds of technical support.

    5.Quickly responce
    Our staffs will keep 24h online and answer your question very quickly.

    Our Company
    Avp300 Avp301 Avp302 Azbil Smart Valve Positioner Butterfly Valve With Positioner
    Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd.
    Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conservancy and hydropower, thermal power generation and other mechanical and electrical equipment products; Well-known brand fluid control valves; instrumentation; hydraulic pipe fittings; bearings; seals; industrial automation and other high-tech enterprises.
    Avp300 Avp301 Avp302 Azbil Smart Valve Positioner Butterfly Valve With Positioner
    Avp300 Avp301 Avp302 Azbil Smart Valve Positioner Butterfly Valve With Positioner
    Avp300 Avp301 Avp302 Azbil Smart Valve Positioner Butterfly Valve With Positioner
    Avp300 Avp301 Avp302 Azbil Smart Valve Positioner Butterfly Valve With Positioner
